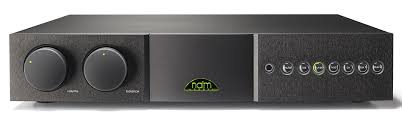

Description
Specification:
AUDIO INPUTS
Input Level Suitable for 2V sources (0.5 to 5.0V)
Input Sensitivity 130mV

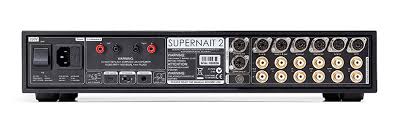

Analogue Inputs 4 x DIN/RCA pair, 1 x RCA pair, 1 x DIN (for Naim phono amplifier)
USER CONTROL INTERFACE
Front Panel Volume control, balance control and front panel buttons
AUDIO OUTPUTS
Line Outputs Fixed (level) AV (DIN), HDD (DIN) 130mV, 600?
Line Outputs Variable (level) Pre-amp (DIN), bi-amp (DIN), sub (RCA pair) 775mV, 50?
Power Output +24V for Naim phono amplifier
Headphone outputs ΒΌ inch (6.35mm) TRS Socket
SPEAKER OUTPUTS
Power Output 80W per channel into 8ohms, 130W per channel into 4ohms
UPGRADES
Power Supply HiCap
CONNECTIVITY
Remote Control Infra-Red (RC5)
Remote Input 1 x 3.5mm jack on rear
Updates 1 x USB mini-B
POWER
Mains Supply 100V, 115V, 230V; 50 or 60Hz
Power Consumption (quiescent) 37VA
Power Consumption (maximum) 400VA
PHYSICAL
Dimensions 87 x 432 x 314 (H x W x D)
Weight 13.4kg
Supplied With NARCOM-4 remote control

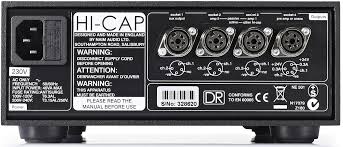

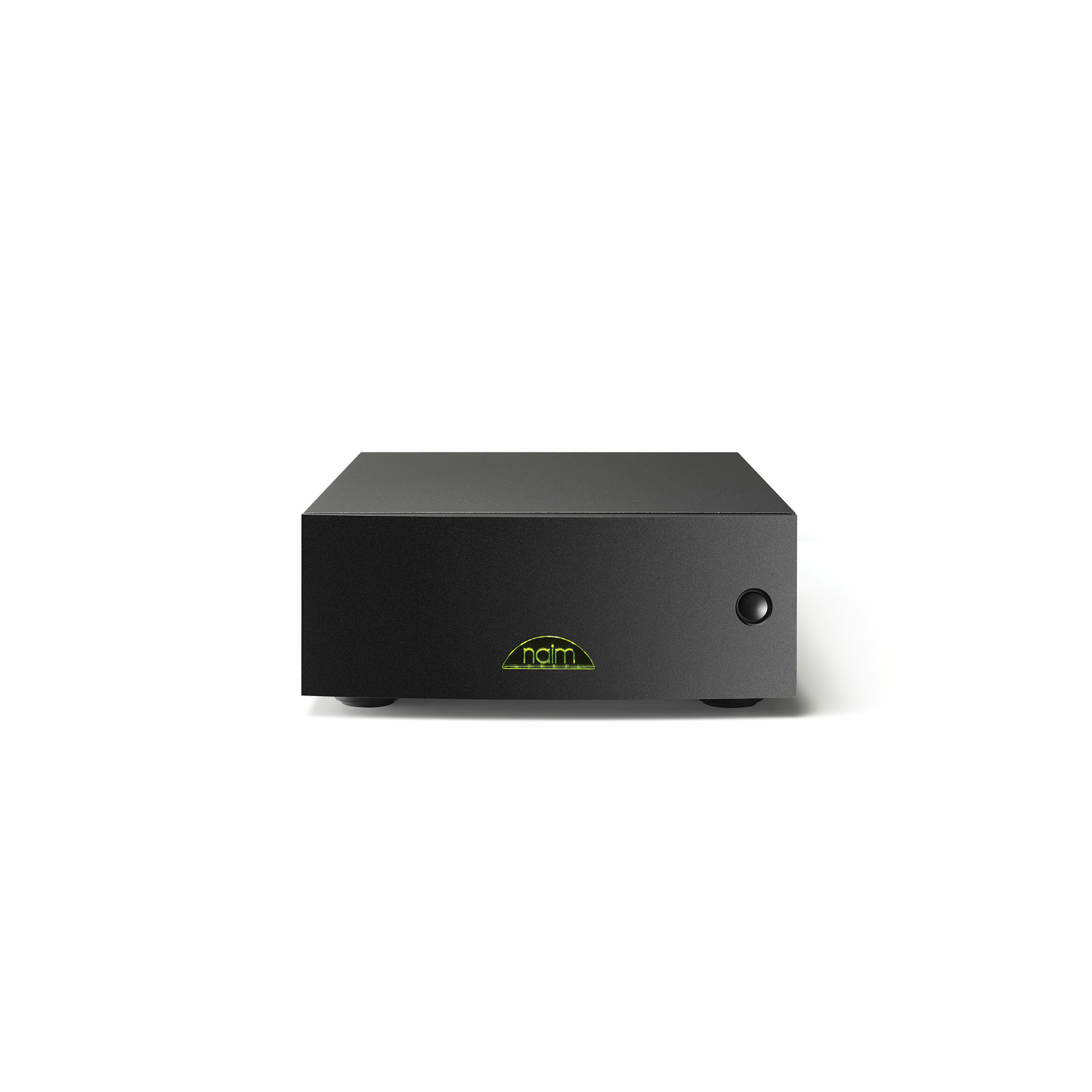

HiCap DR
Technical Specifications
Power Outputs 2 x 24V
Dimensions (HxWxD) 87 x 207 x 314 mm/ 3.4 x 8.14 x 12.3 inches
Weight 7.35 kg
16.2 lbs
Power Mains Supply
230V 50Hz
Supplied With SNAIC
