Description

• HEADPHONE OUTPUT SPECIFICATIONS

  • Headphone Power Output

    500mW

  • Headphone Output Impedance

    32-100 Ohms
    100-250 Ohms
    250-600 Ohms
    600-1,000 Ohms

  ELECTRONIC SPECIFICATIONS

  • Power Output per Channel

    N/A

  • Speaker Impedance

    N/A

  • Rated Power Band

    20Hz to 20kHz

  • Total Harmonic Distortion

    0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
    <0.20% at 1W, 20Hz to 20,000Hz

  • Intermodulation Distortion

    0.04% Typical
    0.4% Maximum

  • Dynamic Headroom

    1.5dB

  • Frequency Response

    +0, -0.5dB from 20Hz to 20,000Hz

  • Sensitivity (Unbalanced)

    1.0 Vrms

  • Sensitivity (Balanced)

    2.0 Vrms

  • Maximum Input Signal (Unbalanced)

    8V

  • Maximum Input Signal (Balanced)

    16V

  • Signal To Noise Ratio

    94dB

  • Input Impedance (Balanced / Unbalanced)

    20K/10K

  • Damping Factor

    >150

  • Preamplifier Output

    N/A

  • Preamplifier Output Impedance

    N/A

  • Voltage Gain

    12dB at 32 Ohms
    17dB at 100 Ohms
    21dB at 250 Ohms
    25dB at 600 Ohms

  • Power Guard

    No

  CONNECTIVITY

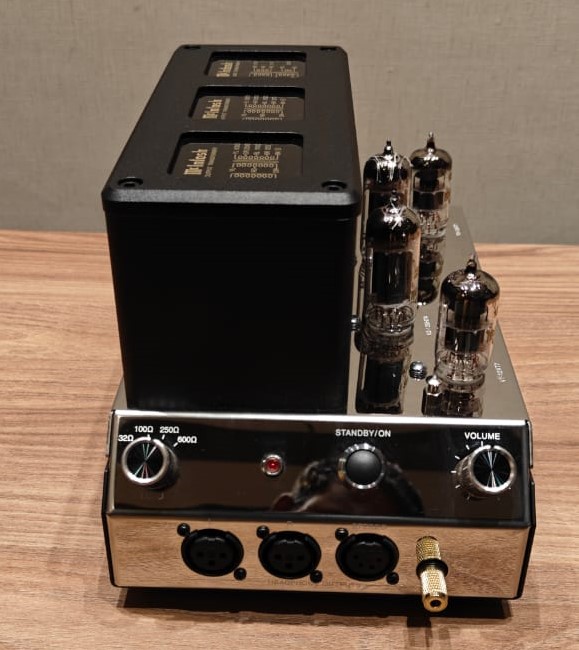

  • Headphone Output

    One pair of 3-pin balanced XLR connectors for dedicated Left and Right balanced output;
    One 4-pin balanced XLR connector for balanced stereo output;
    One 1/4″ stereo headphone jack

  • Balanced Input

    1

  • Unbalanced Input

    1

  • Digital AES/EBU Input

    0

  • Digital Coaxial Input

    0

  • Digital Optical Input

    0

  • Digital MCT Input

    0

  • Digital USB Input

    0

  • Preamplifier Output

    0

  DIGITAL AUDIO SPECIFICATIONS

  • Digital AES/EDU Input Sample Rate

    N/A

  • Digital Coaxial Input Sample Rate

    N/A

  • Digital Optical Input Sample Rate

    N/A

  • Digital MCT Input Sample Rate

    N/A

  • Digital USB Input Sample Rate

    N/A

  CONTROL

  • Tone Controls

    No

  • Power Control Input

    1

  • Power Control Output

    1

  GENERAL SPECIFICATIONS

  • Output Meters

    No

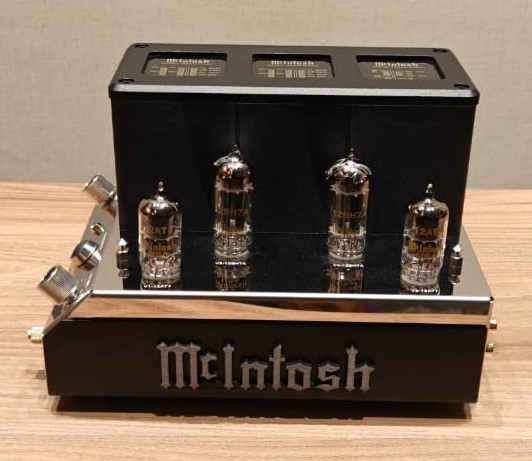

  • Vacuum Tube or Solid State

    Vacuum Tube

  • Power Requirement

    120V 50/60Hz, 1.5A

  • Standby Power Requirement

    <0.5 Watts

  • Output Type

    Unity Coupled Output Transformer

  WEIGHTS & DIMENSIONS

  • Unit Dimensions (W x H x D)

    6-1/8″ (15.6cm) x 5-3/4″ (14.6cm) x 9-1/8″ (23.2cm)

  • Unit Weight

    10.5 lbs (4.8 kg)

  • Shipping Weight

    12 lbs (5.5 kg)
