Description

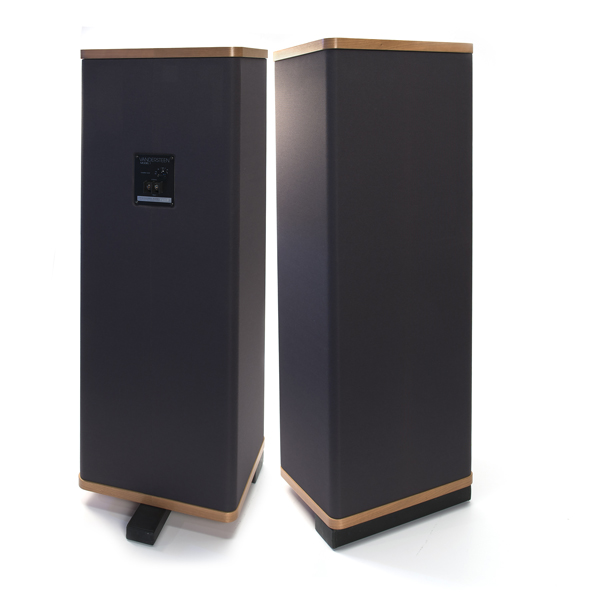

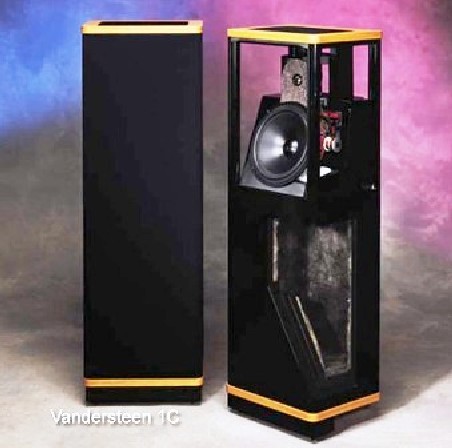

Model 1Ci Specifications
Tweeter
1” Exclusive Dual-Chamber, Transmission-Line Loaded, Ceramic-Coated Alloy Dome with Ferrofluid Voice-Coil Cooling

Woofer
8” Mineral-Filled Polycone with Die-Cast Basket, 1.5” Dual-Layer Voice Coil with Ventilated Aluminum Former, 40 oz. Focused-Gap Magnet Structure

Phase Positive
Recommended Amplification
20-100 Watts Into 8 Ohms

Frequency Response 38Hz – 22.5kHz +/- 3dB
Sensitivity 90 dB, 1 meter with 2.83 volt input
Impedance 6.8 ohms +/- 2 ohms
Crossovers First order/6dB per octave, 2.8kHz
Input Terminals Barrier strips, 7/16″ max width
Dimensions (WHD) 12” x 36” x 10”
Weight 44 lbs. Net
Country of Manufacture Made in the USA
