Description

Specifications
Type: Two-way monitor loudspeaker

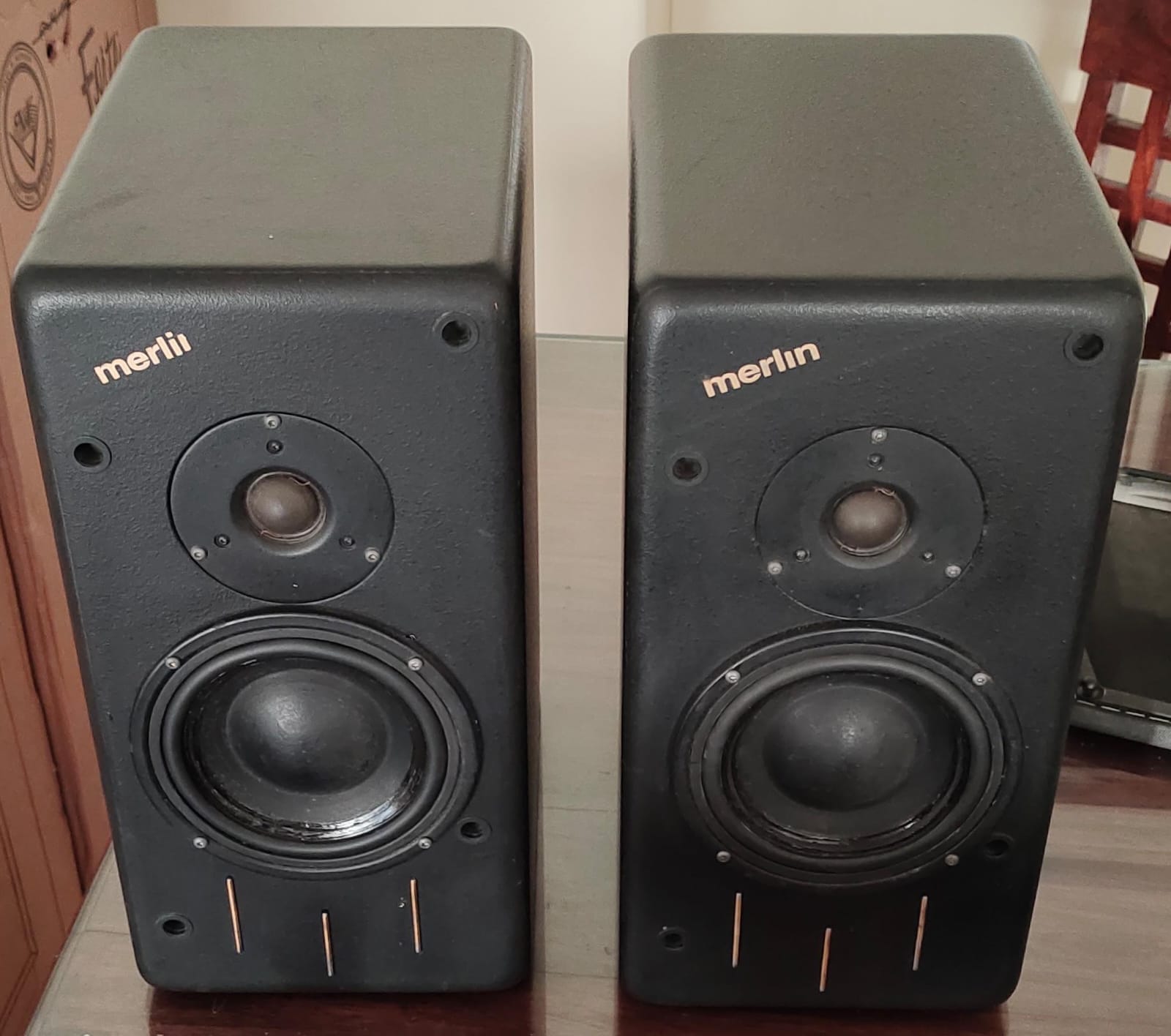

Drivers: 1-inch soft-dome customized Morel MDT30 tweeter and Morel MW 164 6.25- inch damped pulp cone midrange/woofer.

Frequency Response: 55 to 20kHz (+/- 2dB), 1 meter on axis. 10dB down at 35 Hz
Acoustic Phase Shift: Less than 10 degrees
Impedance: 8 Ohms nominal, 6.5 Ohms minimum, and 14 Ohms at crossover point
Sensitivity: 87dB/W/1m
Power Handling: 30 watts minimum with 120 watts maximum

Crossover: Optimized 12dB per octave with crossover point at 2150Hz. Parts include the use of Hovland Aluminum foil and polypropylene capacitors
Caddock Micronix Film resistors (impedance corrected), and hand-wound/potted inductors.

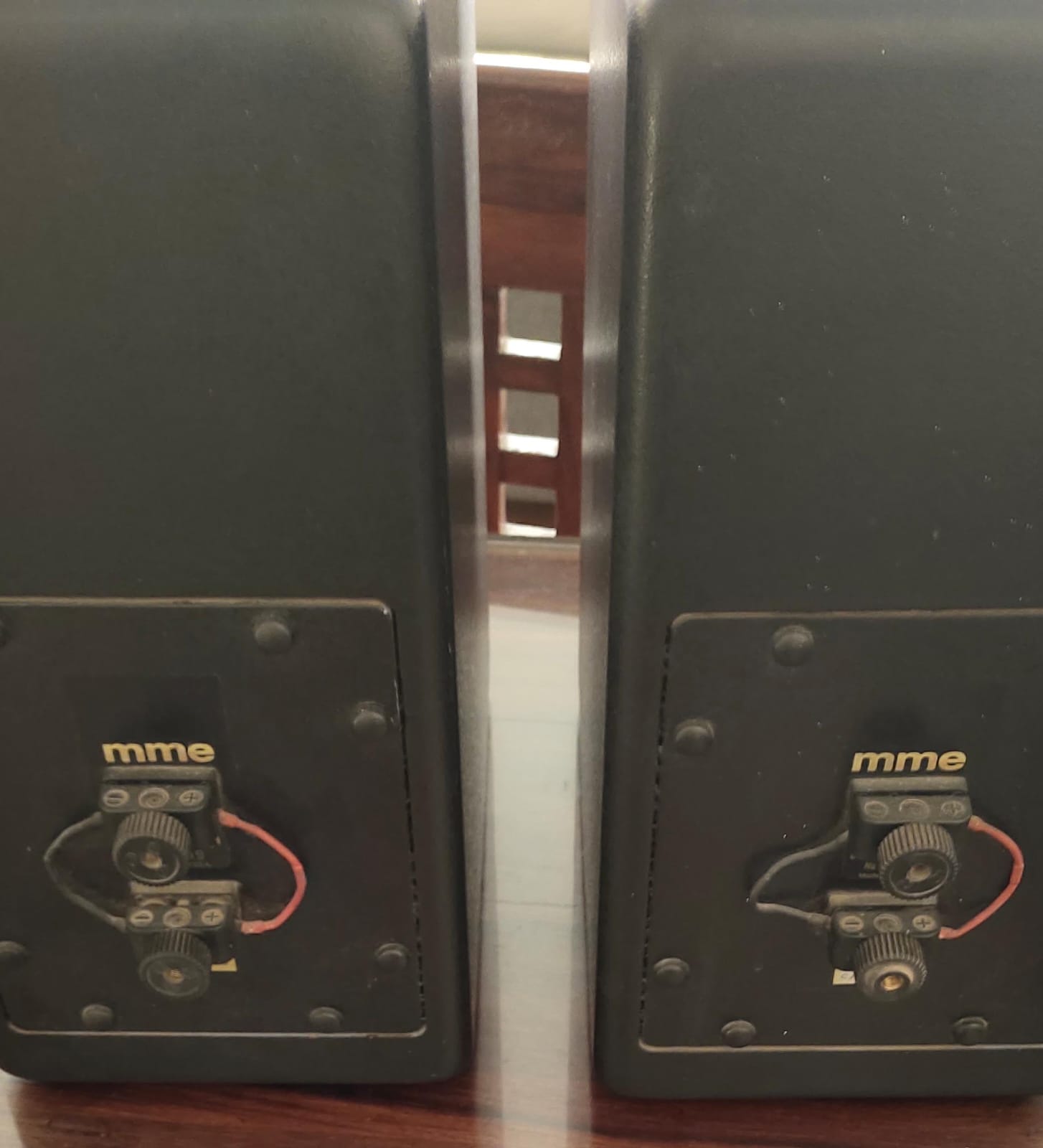

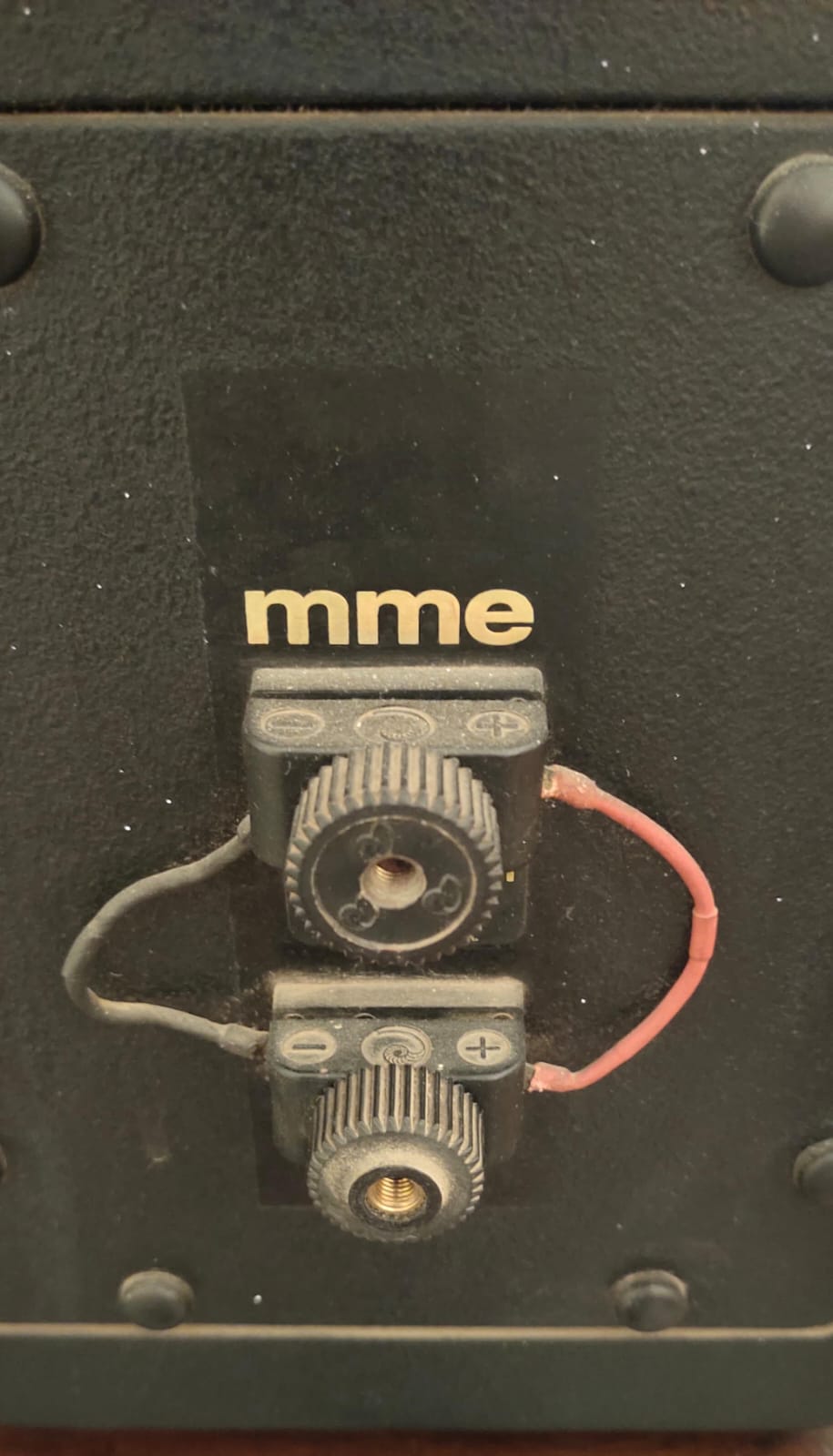

Bi-wireable via Cardas “no-stress” binding posts
Dimensions: 8 x 10.5 x 16 (WxDxH in inches)
Weight: 23 lbs. each
