Description
KEF Q 950 Floor Standing Pair
KEF Q 650C Center
KEF Q 150 Bookshelf 2 Pairs
KEF Q50a ATMOS Pair

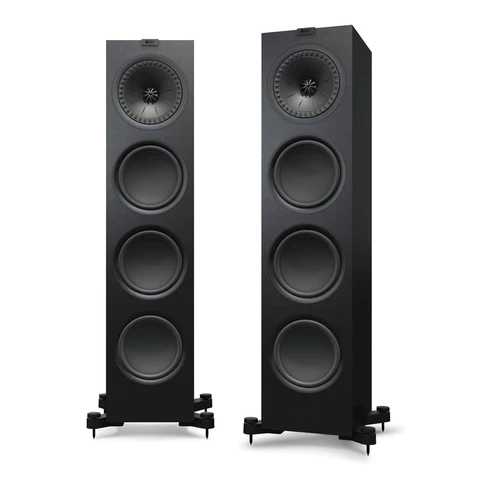

Model: Q950 Floorstanding Speaker
Design: Two and a half-way bass reflex
200mm (8in.) aluminium Uni-Q
38mm (1.5in.)vented aluminium dome HF
200mm (8in.) aluminium LF
2 x 200mm (8in.)aluminium ABR
Frequency Range Free Field (-6dB): 38Hz
Frequency Response (±3dB): 44Hz-28kHz
Crossover Frequency: 2.2kHz
Amplifier Requirements: 15-200W
Sensitivity (2.83V/1m): 91dB
Maximum Output: 113dB
Nominal Impedance: 8? (min.3.2?)
Weight: 20.6kg (45.4 lbs)

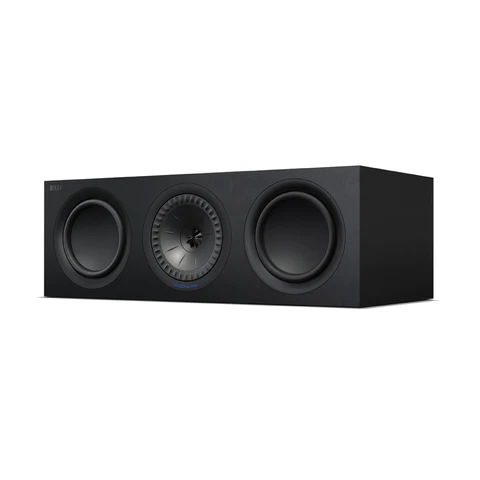

Model: Q650c Center Channel Speaker
Design: Two and a half-way bass reflex
Drive Units: Uni-Q driver array
HF: 25mm (1in.) vented aluminium dome
MF: 165mm (6.50in.) aluminium Uni-Q
LF:165mm (6.5in.) aluminium
ABR: 165mm (6.5in.)aluminium
Frequency Range Free Field (-6dB): 55Hz
Frequency Response (±3dB): 64Hz – 28kHz
Crossover Frequency: 2.5kHz
Amplifier Requirements: 15-150W
Sensitivity (2.83V/1m): 87dB
Maximum Output: 110dB
Nominal Impedance: 8? (min.4.2?)
Weight: 13.6kg (30 lbs)

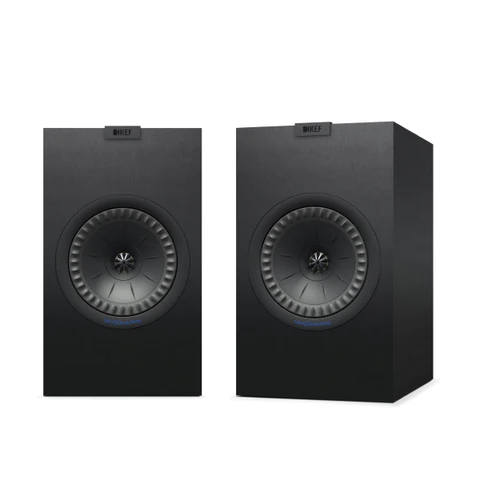

Model: Q350 Bookshelf Speaker
Design: Two and a half-way bass reflex
Drive Units: Uni-Q driver array
HF: 25mm (1in.) vented aluminium dome
LF/MF: 165mm (6.50in.) aluminium Uni-Q
Frequency Range Free Field (-6dB): 42Hz
Frequency Response (±3dB): 63Hz – 28kHz
Crossover Frequency: 2.5kHz
Amplifier Requirements: 15-120W
Sensitivity (2.83V/1m): 87dB
Maximum Output: 110dB
Nominal Impedance: 8? (min.3.7?)
Weight: 7.6kg (16.8 lbs)

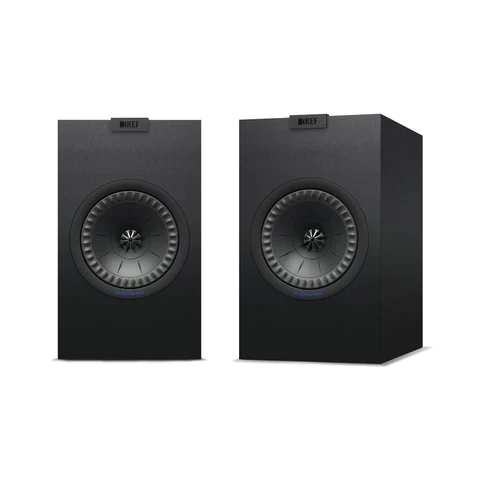

Model: Q150 Bookshelf Speaker
Design: Two-way bass reflex
Drive Units: Uni-Q driver array
HF: 25mm (1in.) vented aluminium dome
LF/MF: 130mm (5.25in.) aluminium Uni-Q
Frequency Range Free Field (-6dB): 47Hz
Frequency Response (±3dB): 51Hz – 28kHz
Crossover Frequency: 2.5kHz
Amplifier Requirements: 10-100W
Sensitivity (2.83V/1m): 86dB
Maximum Output: 108dB
Nominal Impedance: 8? (min.3.7?)
Weight: 5,6kg (12.3 lbs)

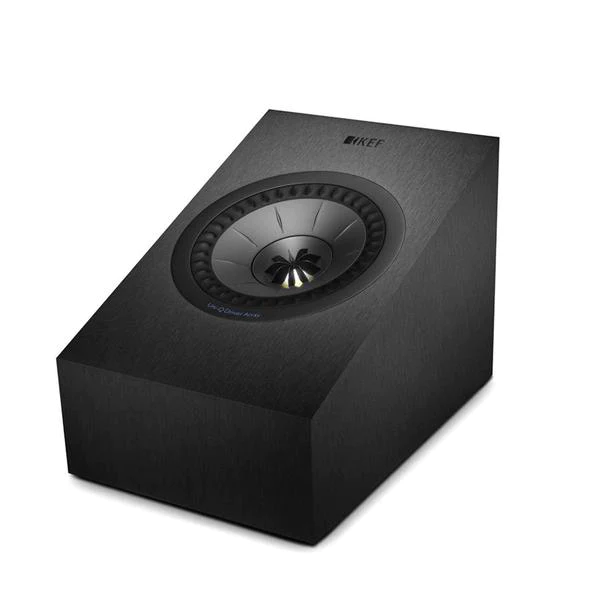

Model: Q50a Dolby Atmos Speaker
Drive Units
130mm (5.25in.) aluminium Uni-Q
25mm (1in.) vented aluminium dome HF
Frequency range Free Field: ( – 6dB) – 96Hz – 19.5kHz
Frequency Response: (±3dB) 105Hz-18.5kHz
Crossover Frequency: 2.5kHz
Amplifier Requirements: 10 – 100W
Sensitivity: (2.83V/1m) 86dB
Maximum Output: 106dB
Nominal Impedance: 8 Ohms (min.4.6 Ohms)
Weight: 4.25kg (9.4 lbs)
