Description
SPECIFICATIONS
Channels: 9.2
Object-Based Configuration: 5.1.4
Object-Based Configuration: 7.1.2
External Amplifier: 11.2
Power Output per Channel: 2-Channel Driven: 125 W at 8 Ohms / 20 Hz to 20 kHz / 0.05% THD, 165 W at 6 Ohms / 1 kHz / 0.7% THD
1-Channel Driven: 200 W at 6 Ohms / 1 kHz / 1% THD, 235 W at 6 Ohms / 1 kHz / 10% THD
Frequency Response: 10 Hz to 100 kHz +1/-3 dB (Direct Mode)
Speaker Impedance: 4 to 16 Ohms
DTS Compatibility: DTS-HD Master Audio, DTS:X
Dolby Compatibility: Dolby Atmos, Dolby Pro Logic IIz, Dolby TrueHD
Auro 3D Support: Yes
Up-mixing Technology: Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology
Supported File Formats: AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
HDR Compatibility: HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
Pass-Through Support: 8K60p 4:4:4 (3D, BT.2020)
Upscaling: 8K
GUI: Yes

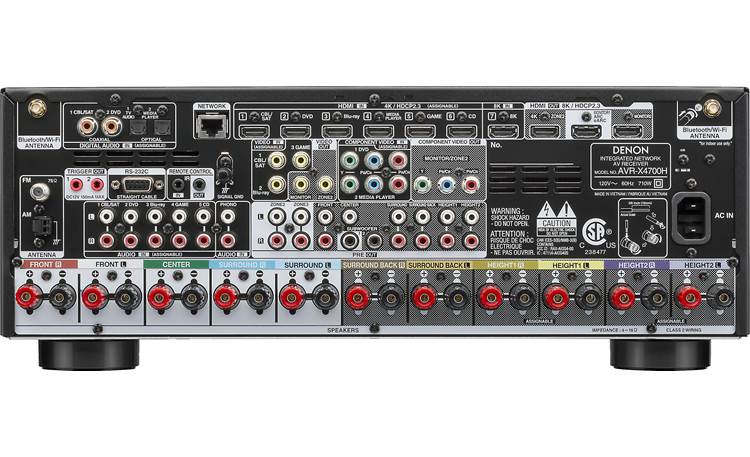

Rear A/V Inputs: 7 x HDMI, 2 x 3RCA Component, 3 x RCA Composite, 2 x Optical TOSLINK, 2 x Digital Coaxial, 5 x Stereo RCA, 1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs: 3 x HDMI, 1 x 3RCA Component, 2 x RCA Composite, 2 x RCA Subwoofer,1 x 11-Channel RCA Pre-Out, 1 x Stereo RCA Zone 2 Pre-Out, 1 x Stereo RCA Zone 3 Pre-Out
Front I/O: 1 x HDMI Input, 1 x USB Type-A Input, 1 x 1/4″ / 6.35 mm Headphone Output, 1 x 1/8″ / 3.5 mm Setup Mic Input
Other Rear I/O: 2 x Bluetooth/Wi-Fi Antenna Terminal Input, 1 x AM Antenna Terminal Input, 1 x FM Antenna Terminal Input, 1 x RJ45 (Ethernet), 1 x DE-9 (RS-232C), 2 x 1/8″ / 3.5 mm (12 V Trigger) Output, 1 x 1/8″ / 3.5 mm (IR) Input, 1 x 1/8″ / 3.5 mm (IR) Output
Speaker Connectors: 11 x Binding Post Pairs
HDCP Support: Version 2.3
Audio Return Channel (ARC): Yes, eARC
HDMI CEC: Yes
Input Impedance: 47 Kiloohm’s
Input Sensitivity: 200 mV
Signal to Noise Ratio: 102 dB (Direct Mode / IHF-A)
Wireless Audio Protocols: AirPlay 2, HEOS
Virtual Assistant Support: Amazon Alexa, Apple Siri, Google Assistant, Josh.ai
Tuner Type: AM, FM
Radio Frequencies: AM: 520 to 1710 kHz, FM: 87.5 to 107.9 MHz
AC Input Power: 120 VAC, 60 Hz
Power Consumption: Active: 710 W, No Sound (ECO Off): 110 W, No Sound (ECO On): 65 W, Network Standby: 3.5 W, CEC Standby: 0.5 W, Standby: 0.1 W
Dimensions (W x H x D): 17.1 x 9.3 x 15.3″ / 43.4 x 23.6 x 38.9 cm (Antenna Up), 17.1 x 6.6 x 15.3″ / 43.4 x 16.8 x 38.9 cm (Antenna Down), 17.1 x 6.6 x 14.9″ / 43.4 x 16.8 x 37.8 cm (Antenna Removed)
Weight: 30.2 lb / 13.7 kg
